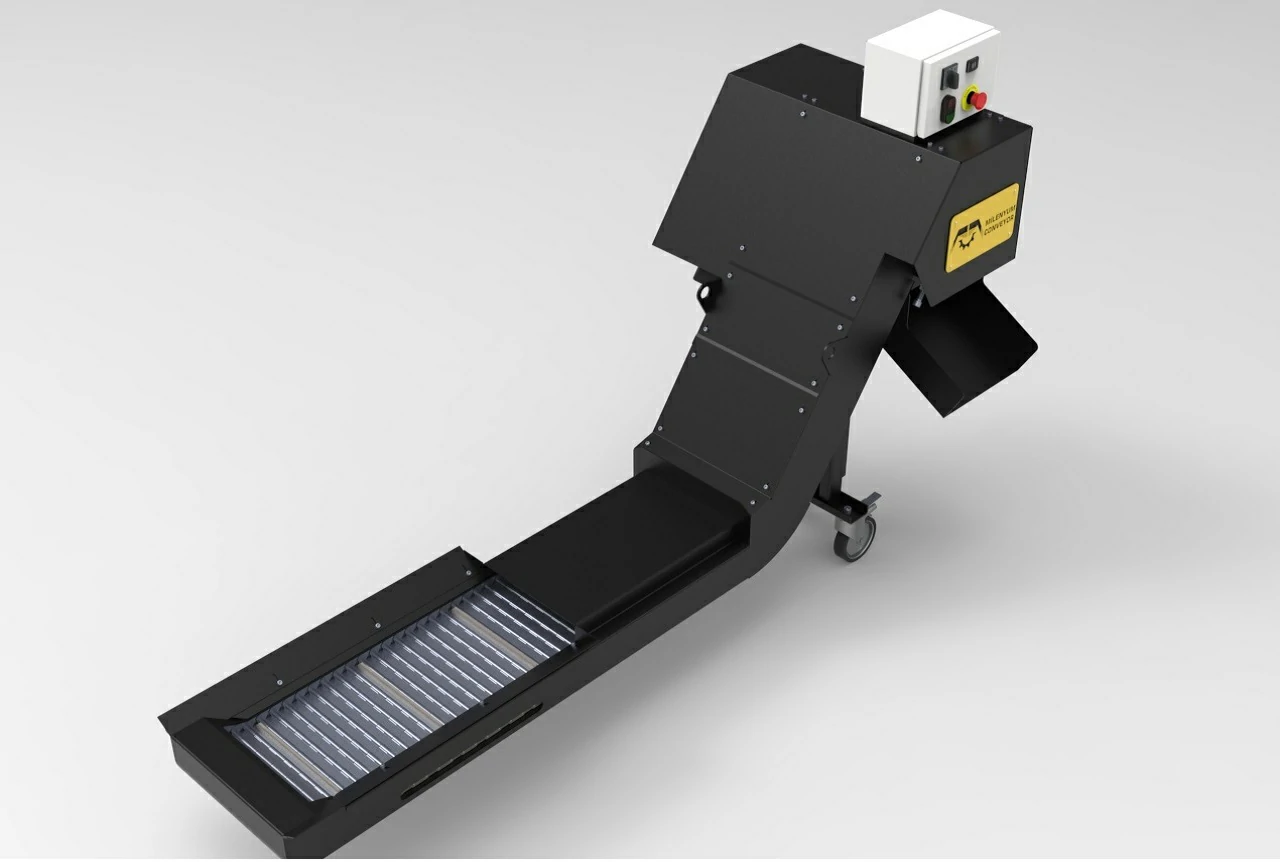

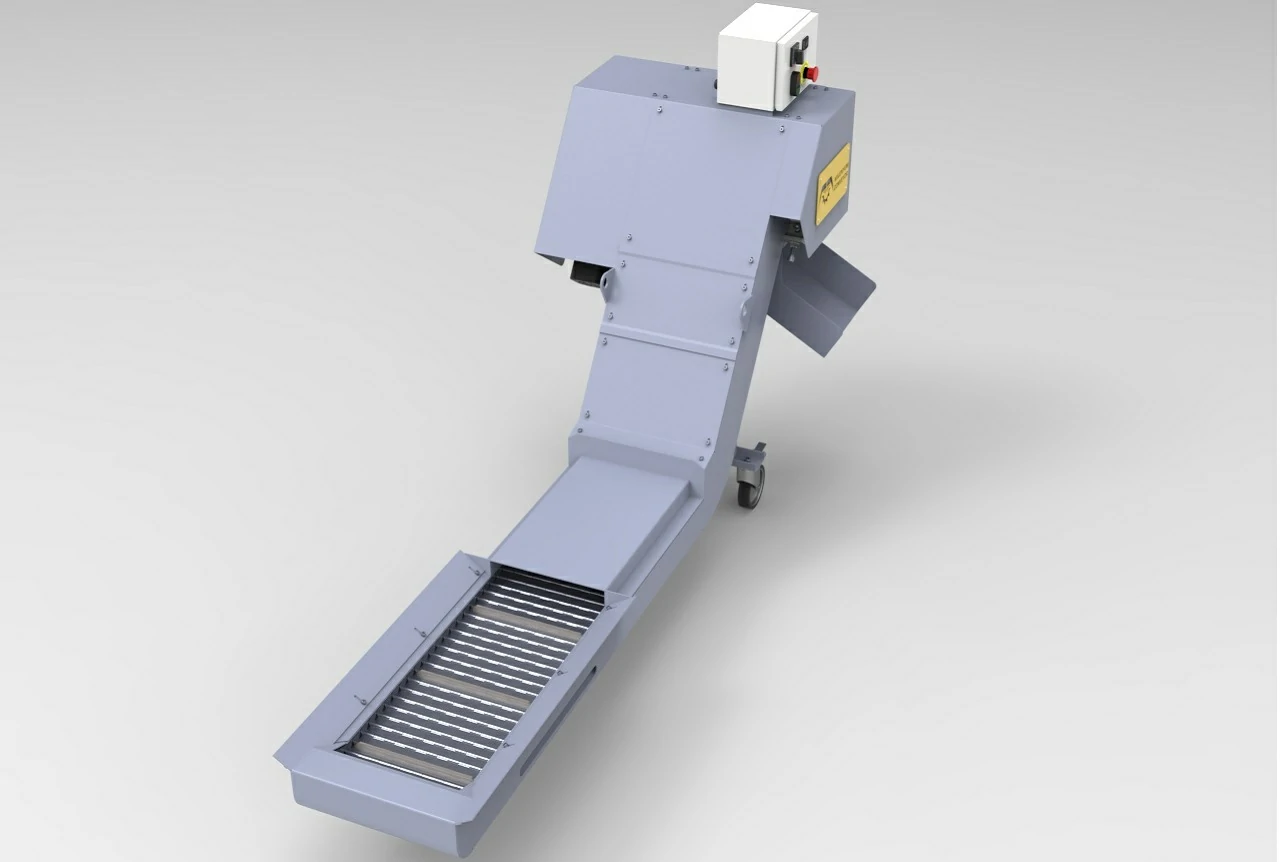

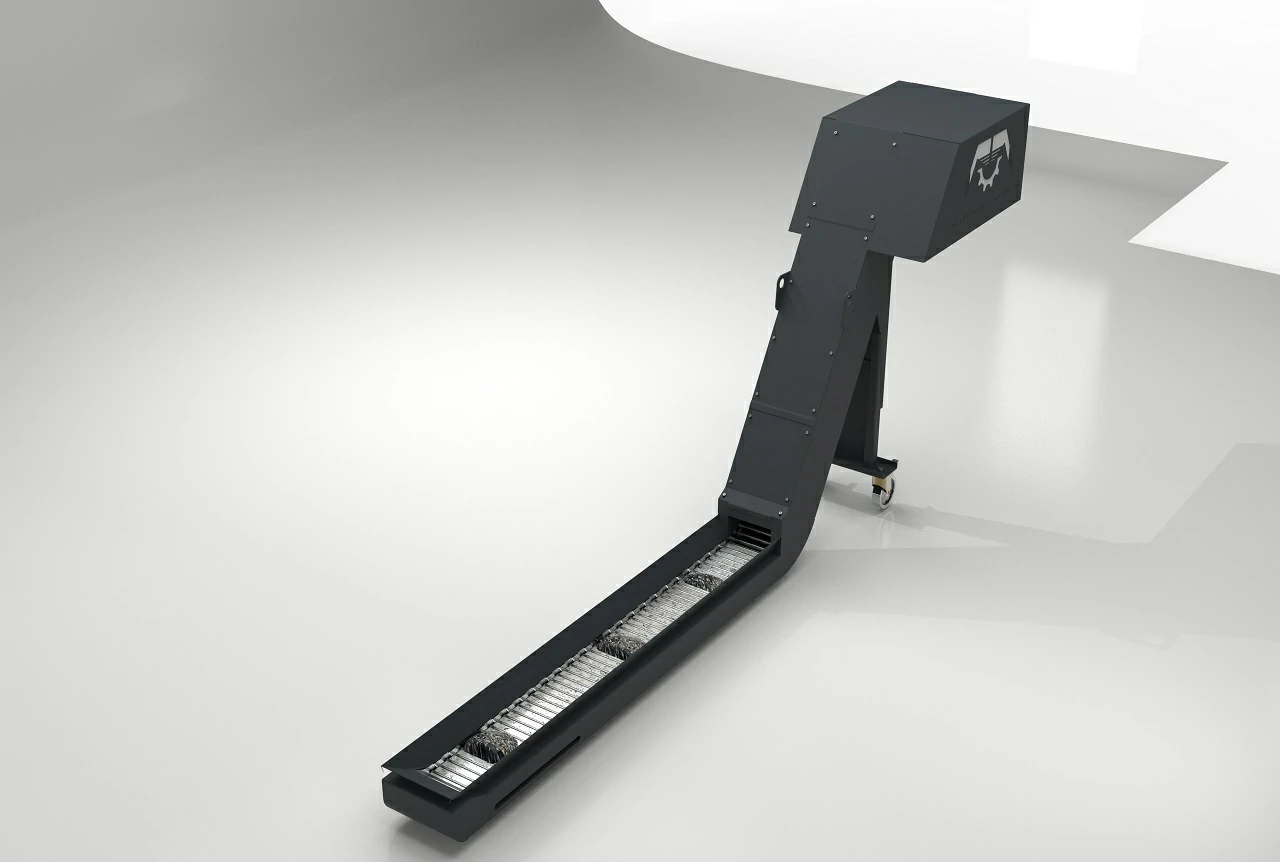

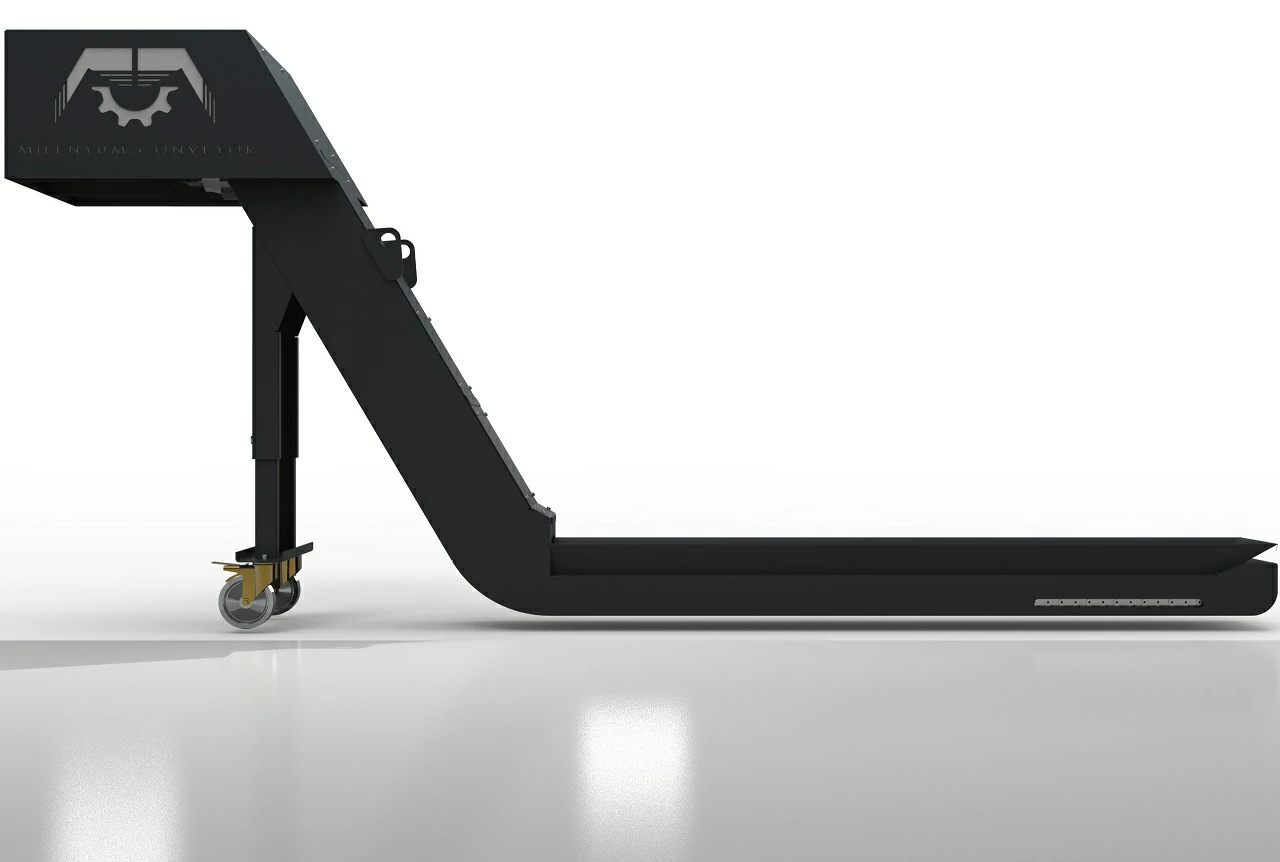

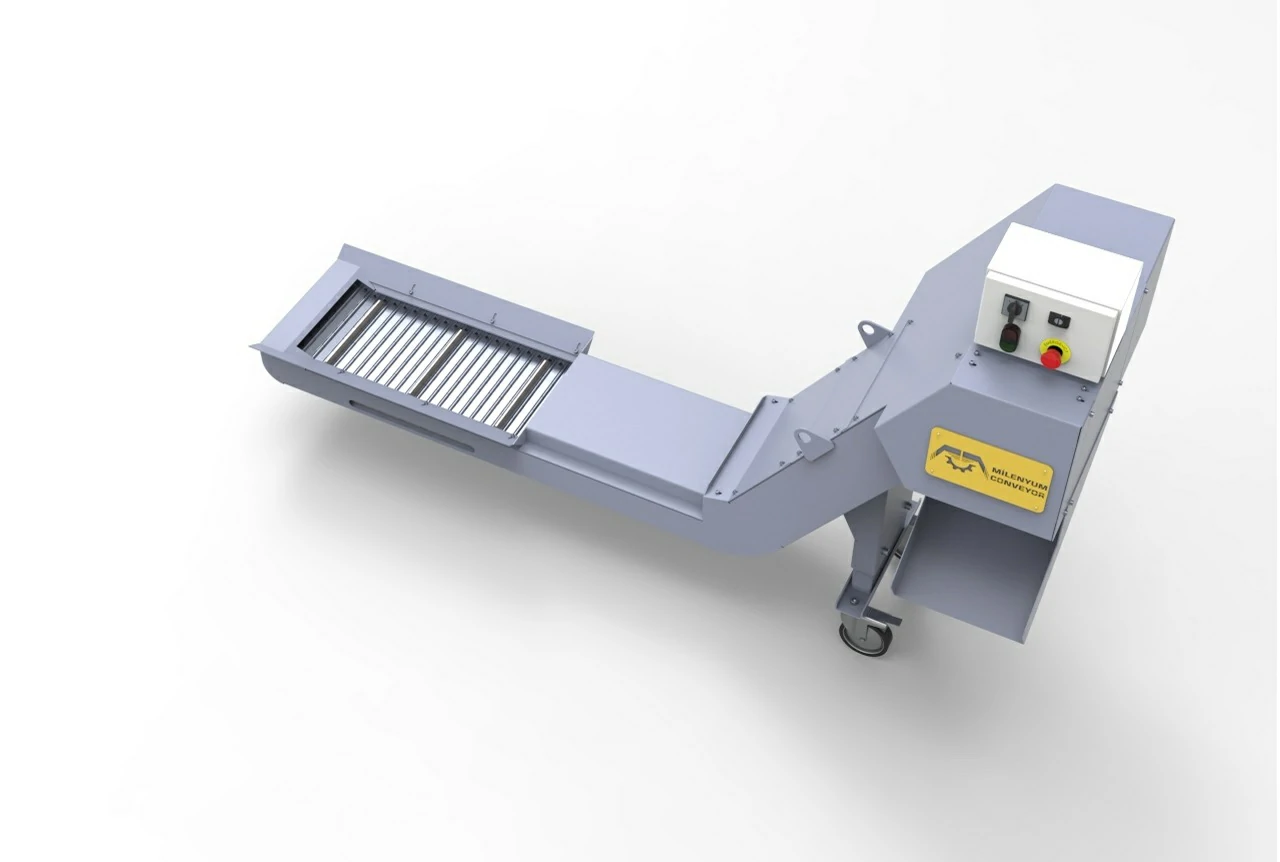

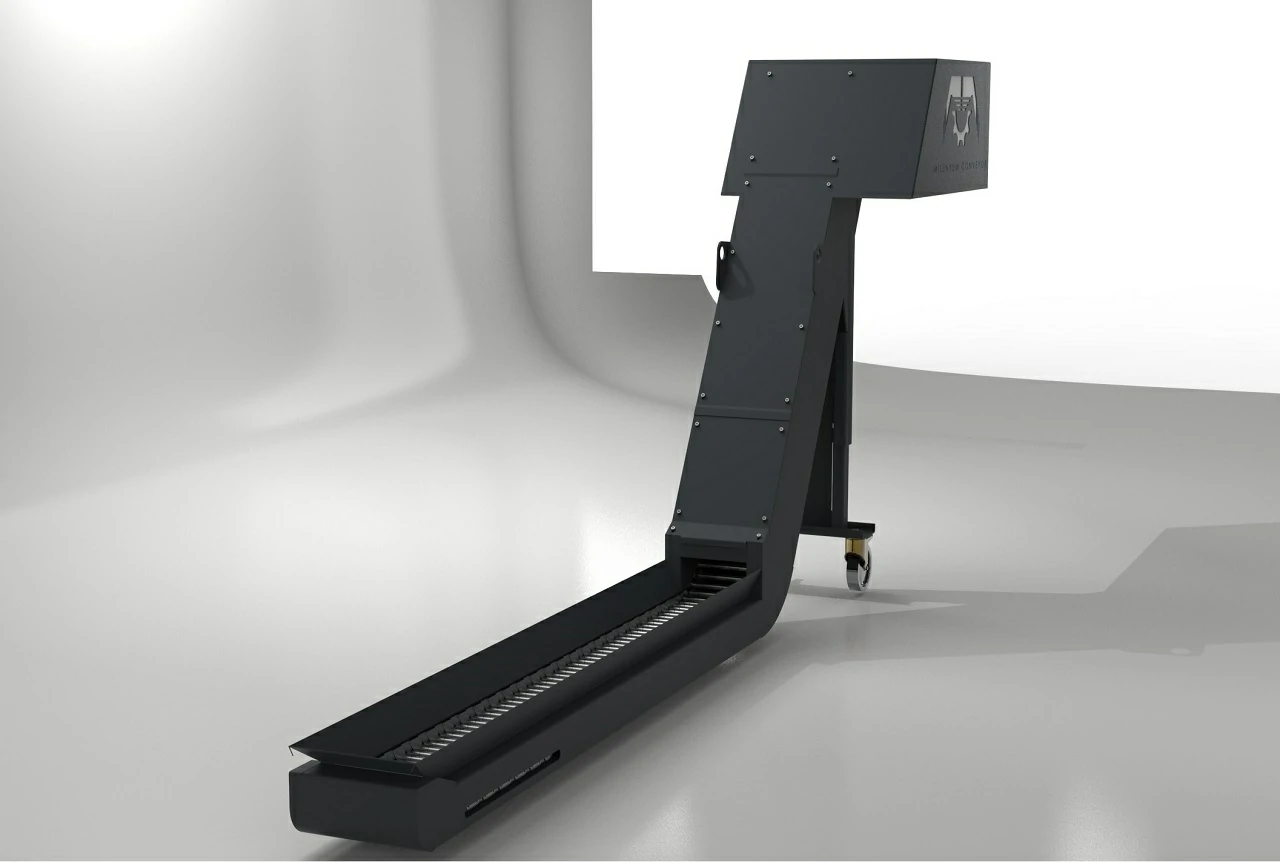

MILCHIP CONVEYOR SERIES

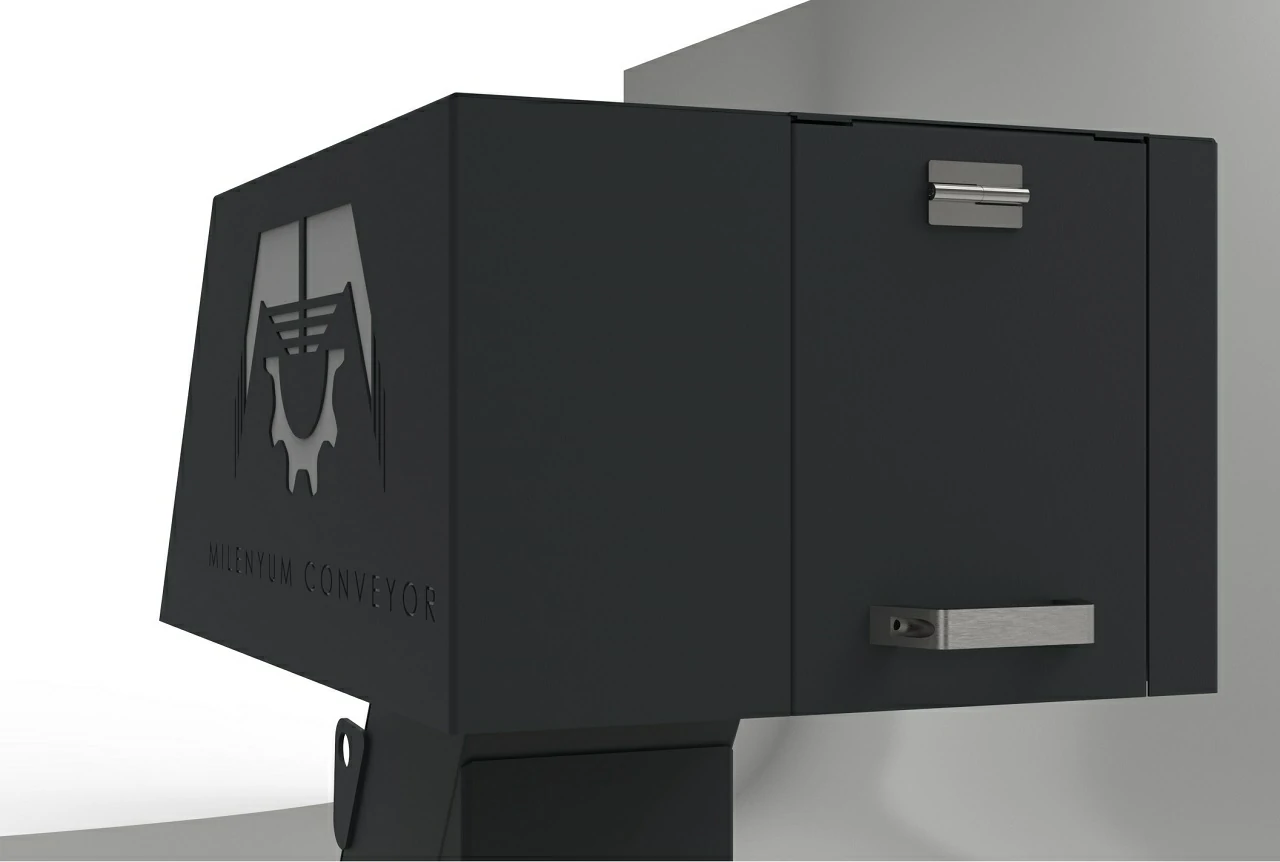

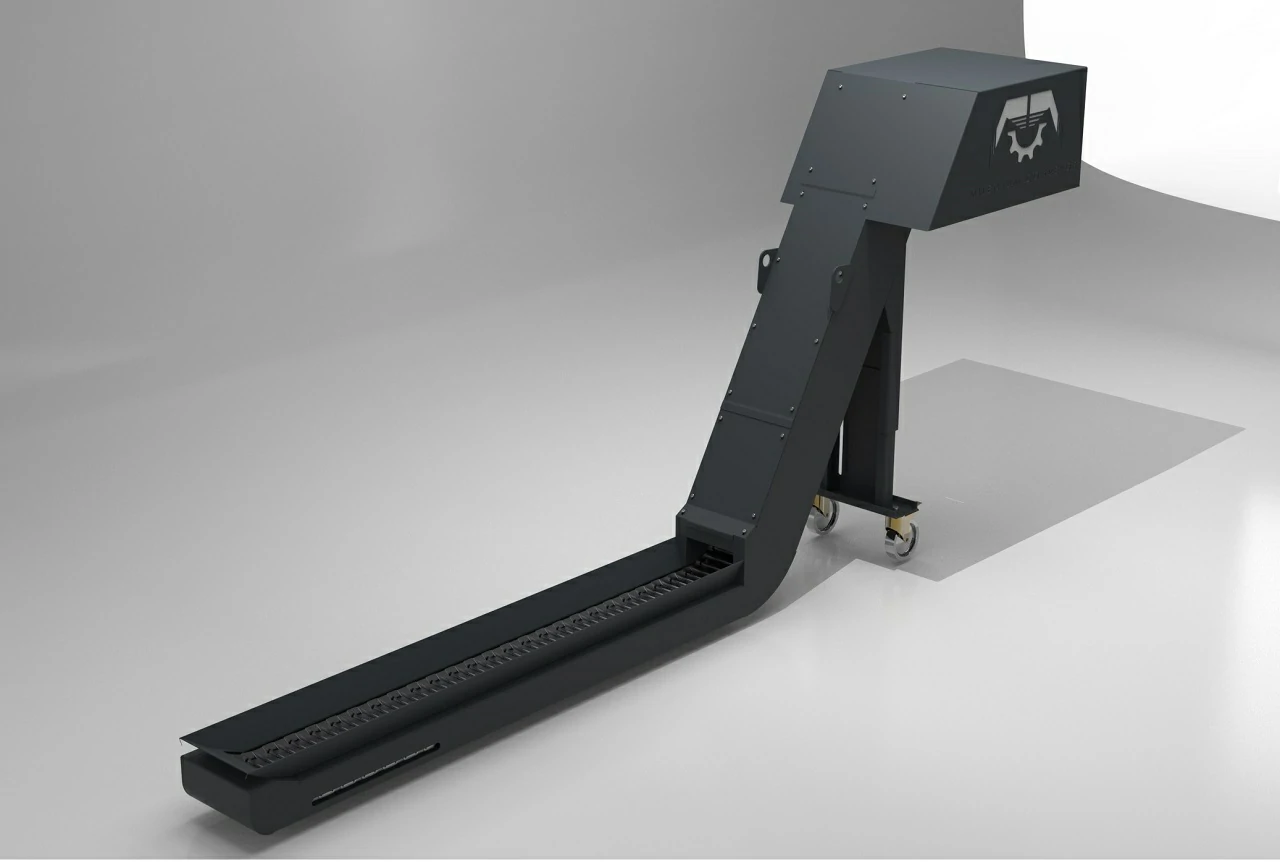

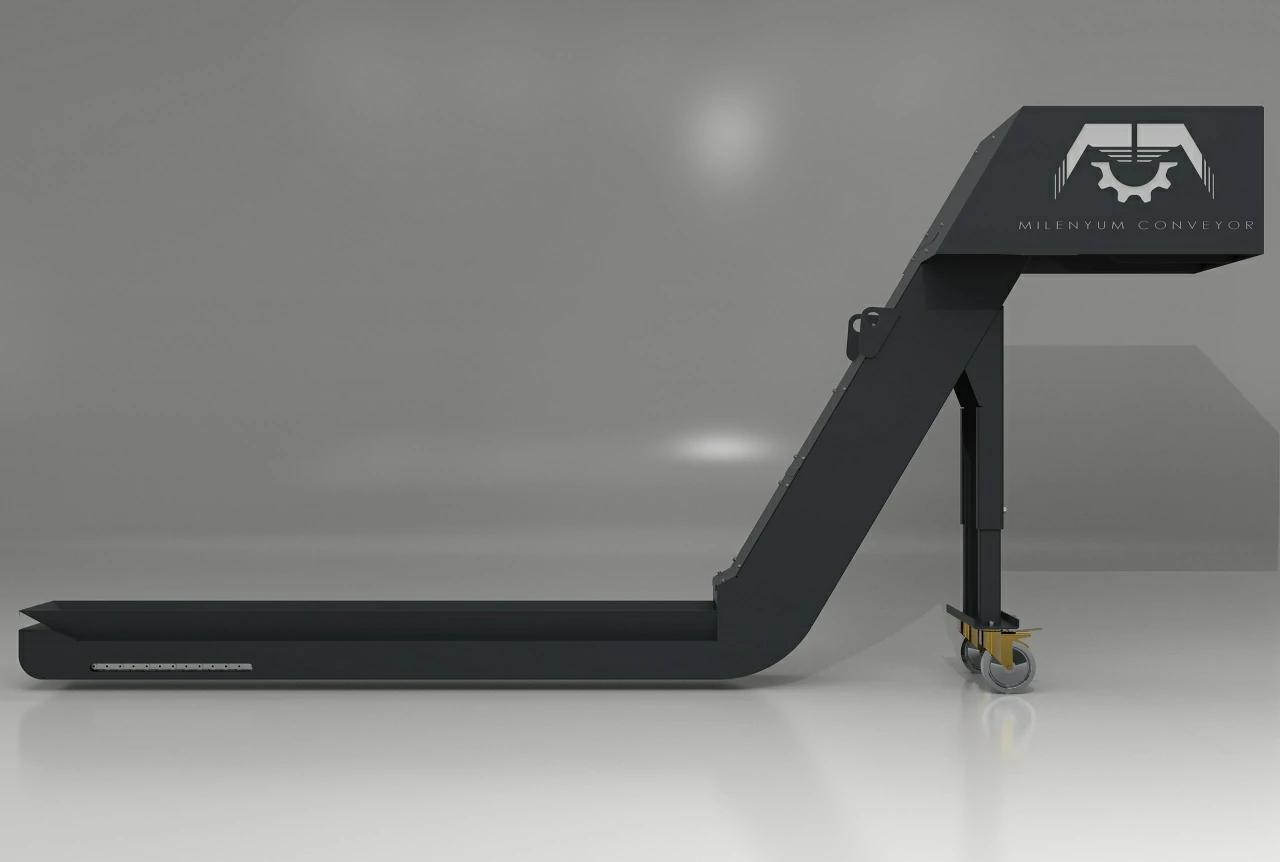

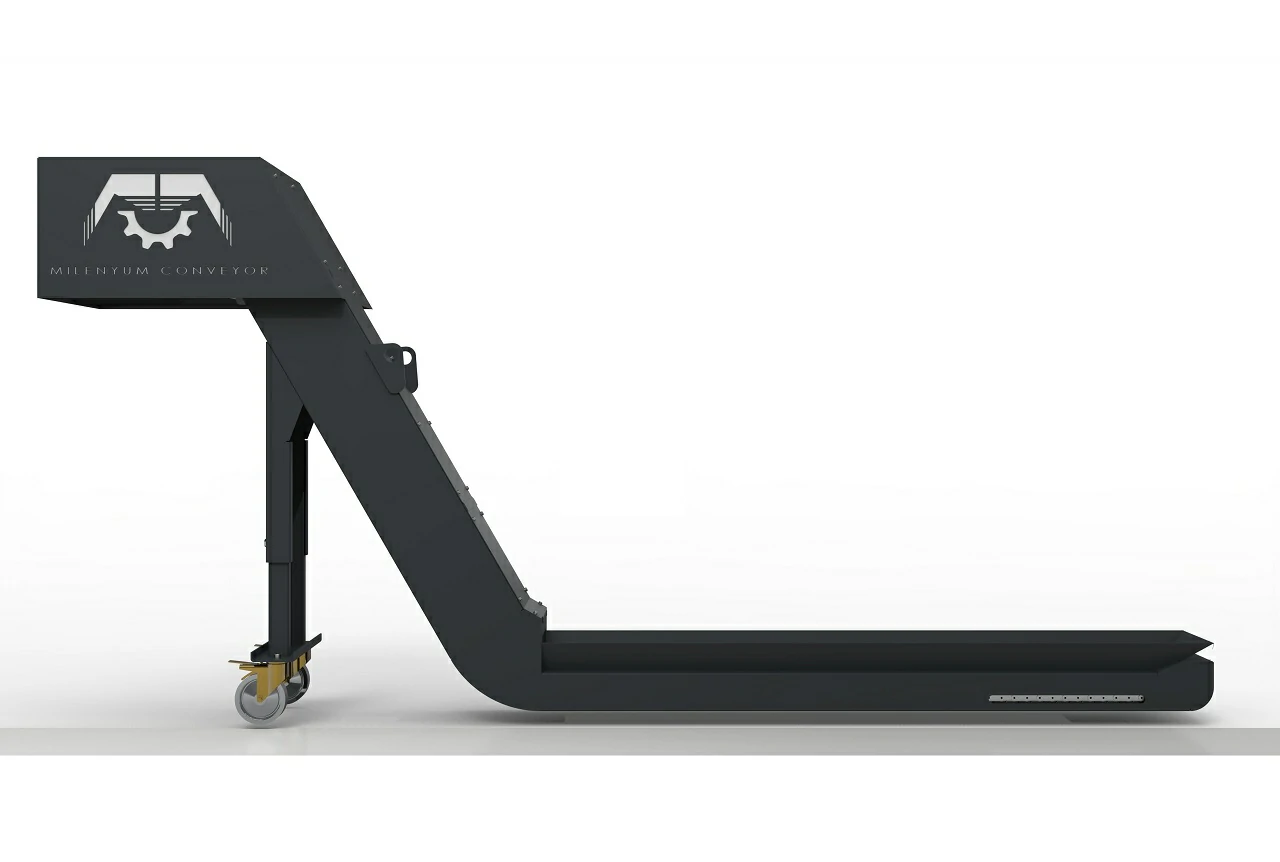

The Milenyum Milchip hinged steel belt chip conveyor series is designed to overcome the challenges of your most demanding material handling tasks. Thanks to its unique chip transport system, it provides smooth, virtually maintenance-free operation. Milchip ensures reliable transport performance even when the material to be transported is dirty and abrasive, thanks to its robust hinged steel belts. It is designed for the transport of mixed, spiral, medium-sized chips, and particles generated during the processing of iron materials. It provides high efficiency in conveying sub-parts from laser cutting, plasma cutting, press operations, CNC machining center parts, and CNC automatic products. The mixed chips transported on the moving steel pallet are discharged through a powerful motor concealed under a protective plate.
Why Choose the Milchip Series ?
The Milenyum Milchip chip conveyors eliminate problems such as breakage, jamming, and motor scraping commonly encountered in other types of conveyors with their innovative design.
Show 3D- High Carrying Strength
- Design Suitable for Working with Coolant
- Serial Operation
- Lower costs
- Space Saving
- Ideal Solution for CNC Machining Centers
- Drum Filter (filtering up to 25 microns)
- Socket Sieve (filtering up to 50 microns)
- Adjustable "v" Sheets
- Integrated Coolant Tank
- Cast iron
- Steel
- Iron Material
- Aluminum
- Cobalt Medium Chip
- Rough Sawdust
- Spiral Chips
- Large Parts (Press Under Parts, Laser Under Parts, Etc.)
- Brushes
- Wipers
- Coolant Tanks
- High Temperature Resistance
- Drum filter (To Remove Fine Particles from Coolant)
- Part Hopper Unloading Mechanism
- Pneumatic Diverter
- Oil Skimmers
- Belt Type: Hinged Steel Belt
- Belt Speed: 1 – 3.4 mt/min
- Working Angle: 0°-30°-45°-60°-75°
- Pitch Types: 31,75 - 38,1 - 50,80 - 101,6 - 152,5

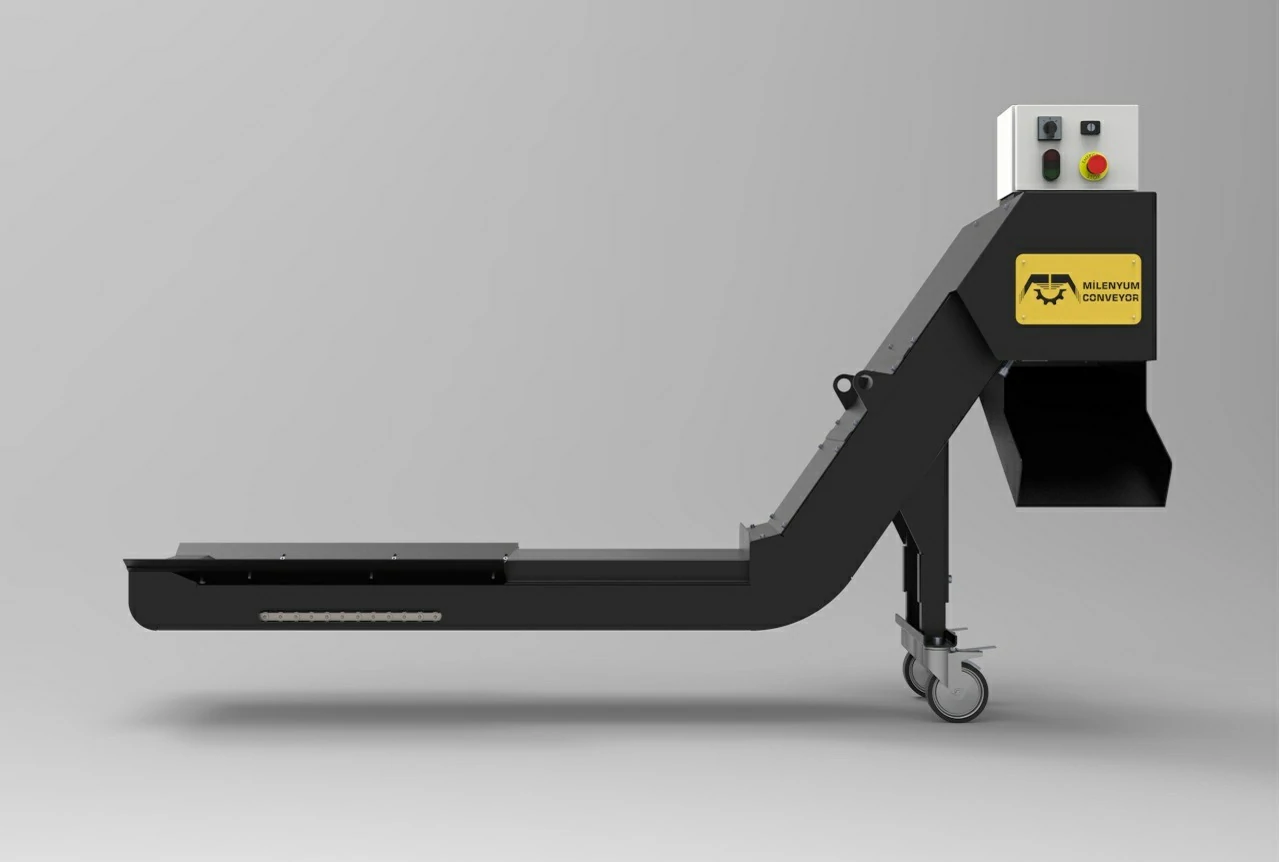

- Electrical Connection: Panel, Switch, Socket, PLC
- Engine Power: 0,25 – 3 kW

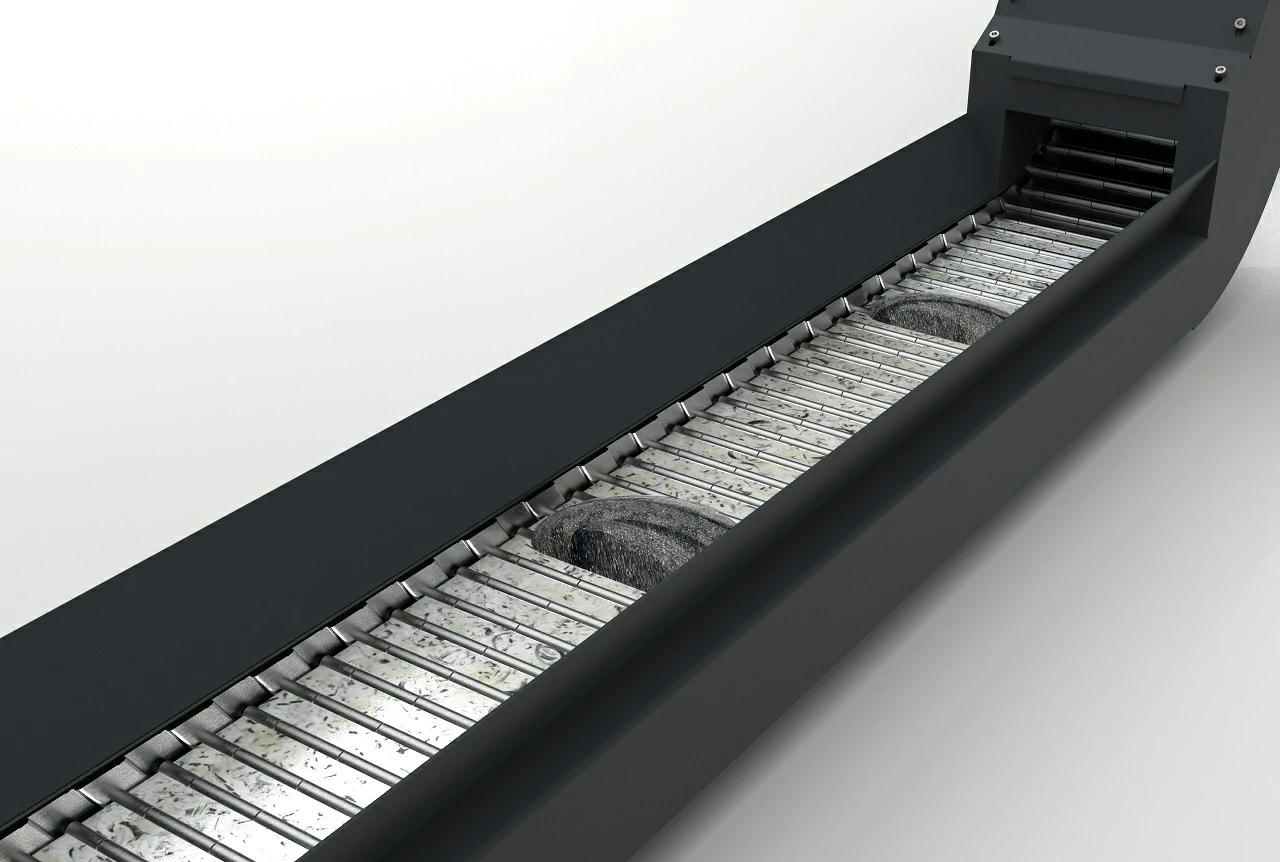

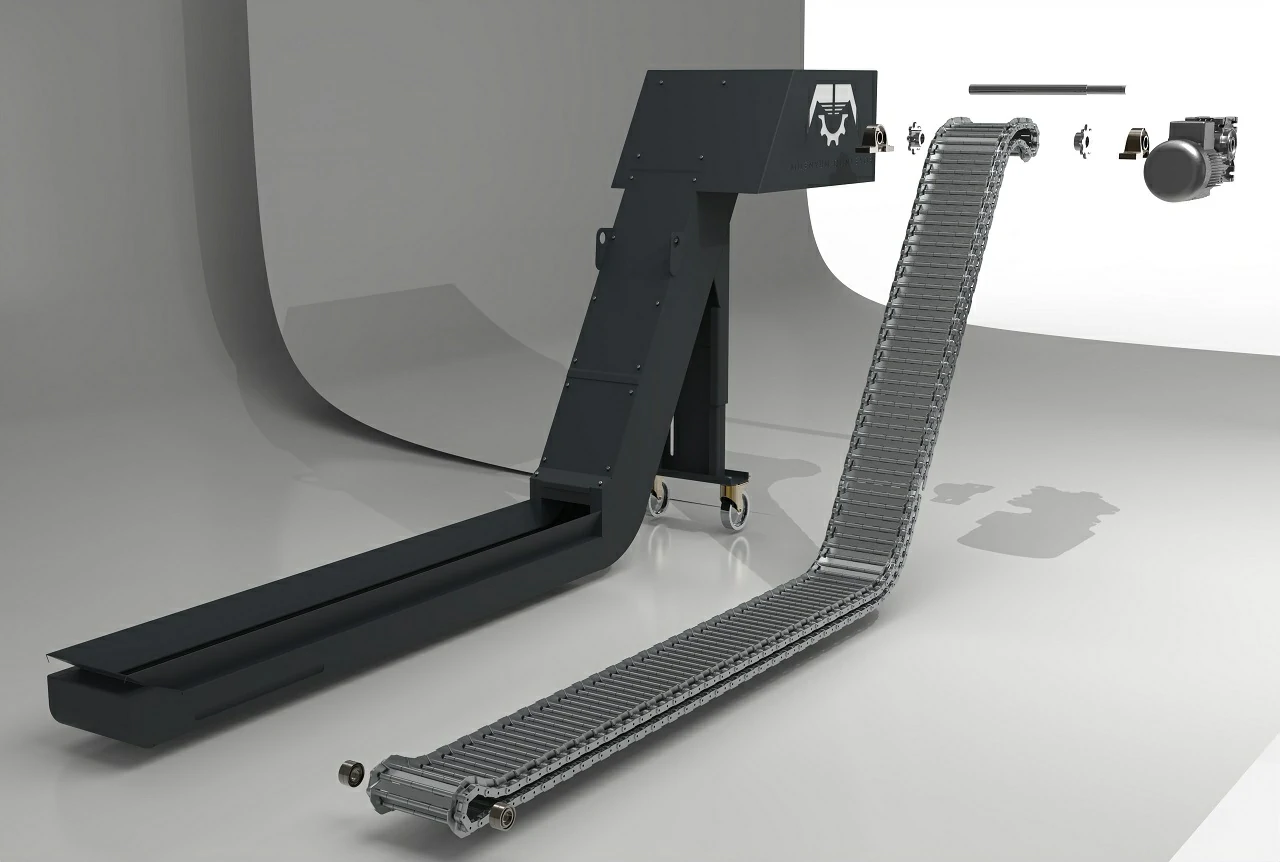

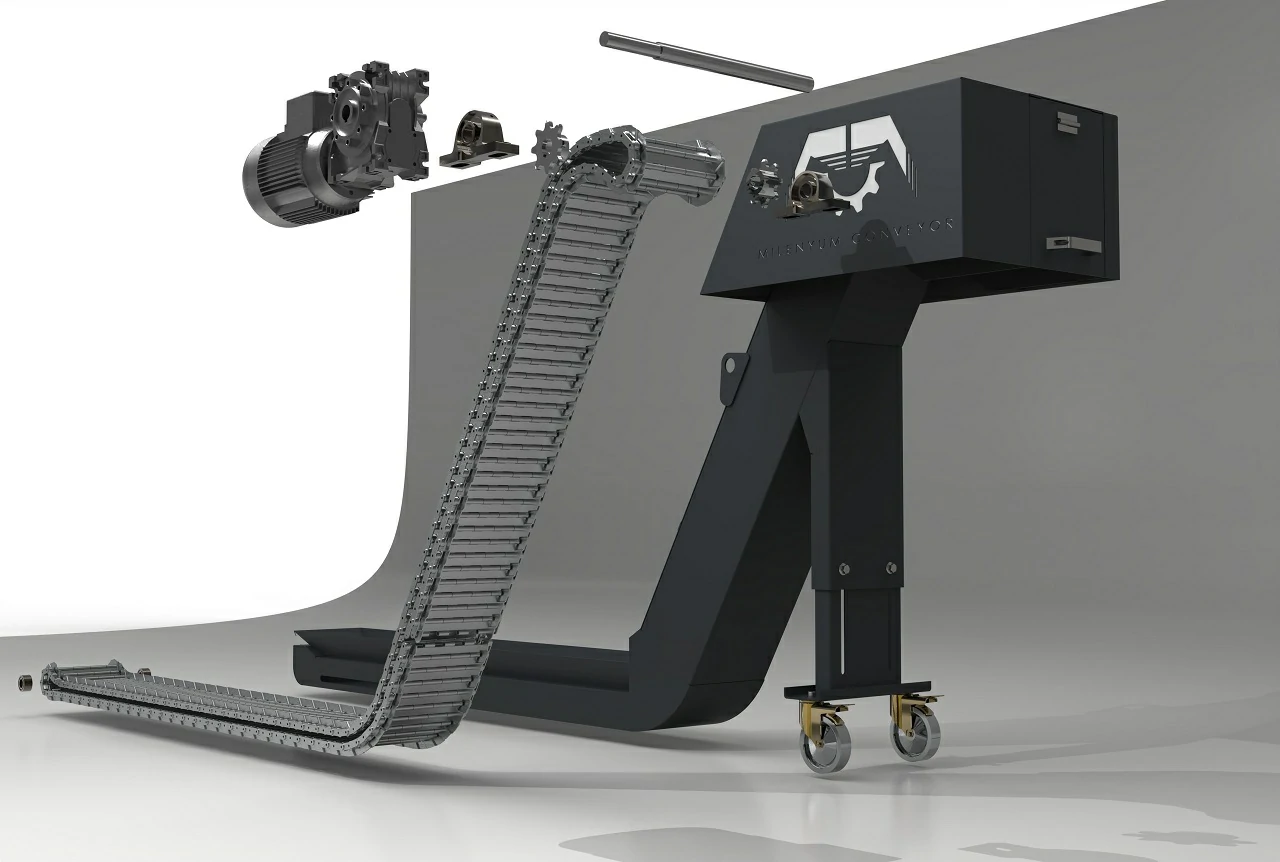

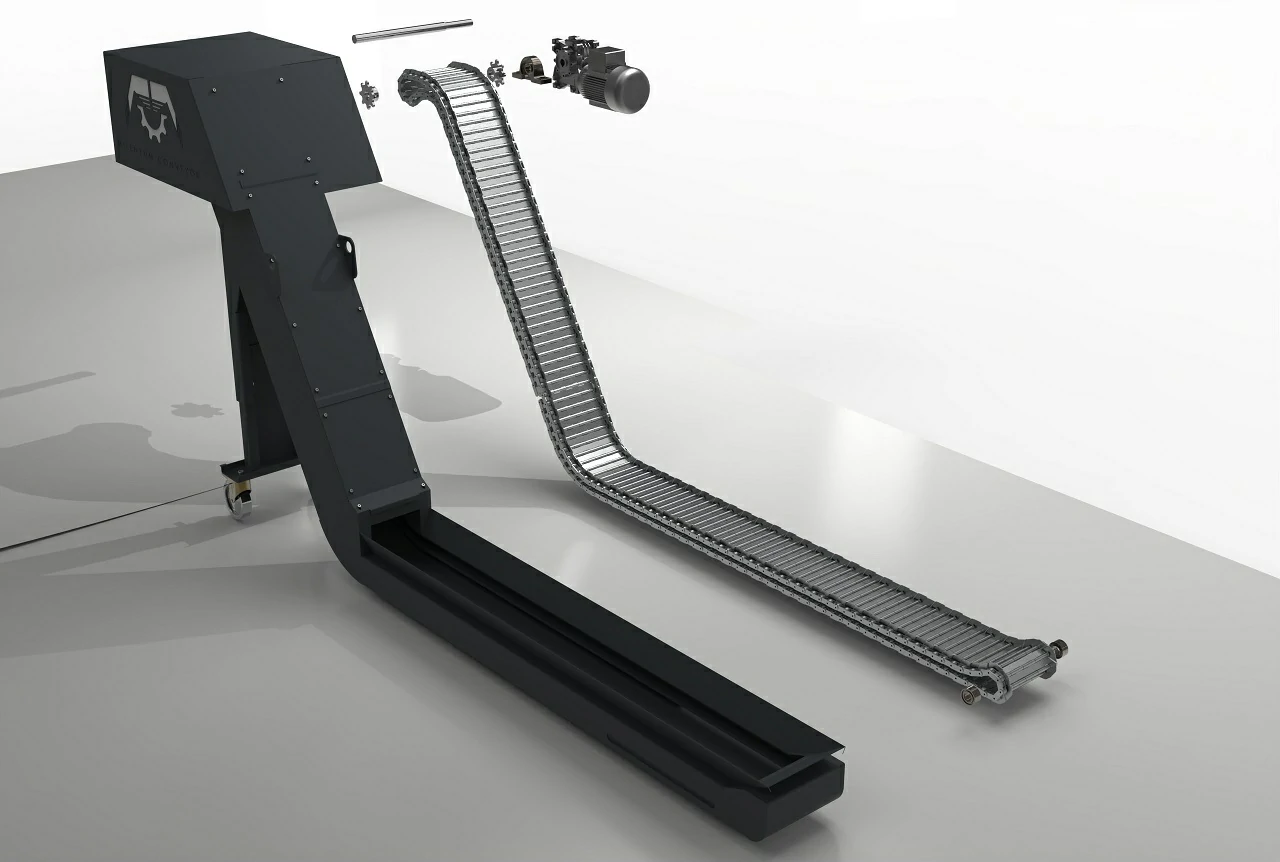

The Milenyum Milchip hinged steel belt chip conveyor series is meticulously manufactured with precise dimensions and tolerances in press molds, preventing the chips and materials to be transported from getting between the hinged steel belts. Interlocking jaws prevent material from getting caught in the chain, ensuring a tight seal on both sides of the hinged steel belt. Therefore, there is no risk of jamming, tearing, or breakage in the transport mechanism when conveying sharp, abrasive particles, and scrap materials. Maintenance in the Milchip series is minimal, and in addition to the electric motor, the parts requiring protection are completely enclosed. The Milchip series, highly beneficial for transporting chips and parts from CNC machines processing various materials, CNC automatic, broaching and pressing machines, as well as from laser and plasma cutting machines, is available in various sizes, pitches, and configurations according to customer preferences.
